VSM23-P
Passive UHV Compatible Stage
From £1,948.00 excl. VAT and transportation cost$2,675.00 excl. VAT and transportation cost€2,280.00 excl. VAT and transportation cost

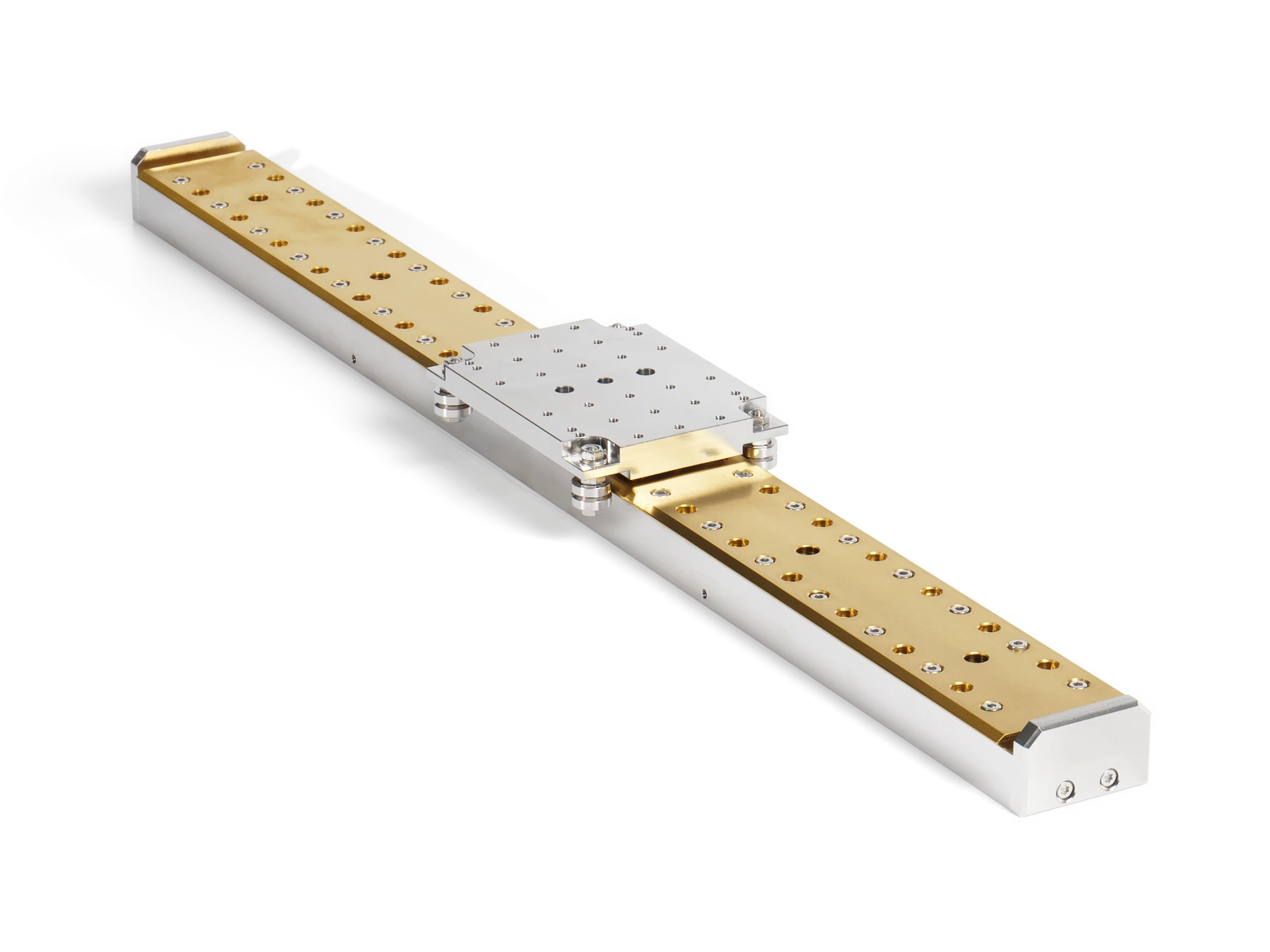

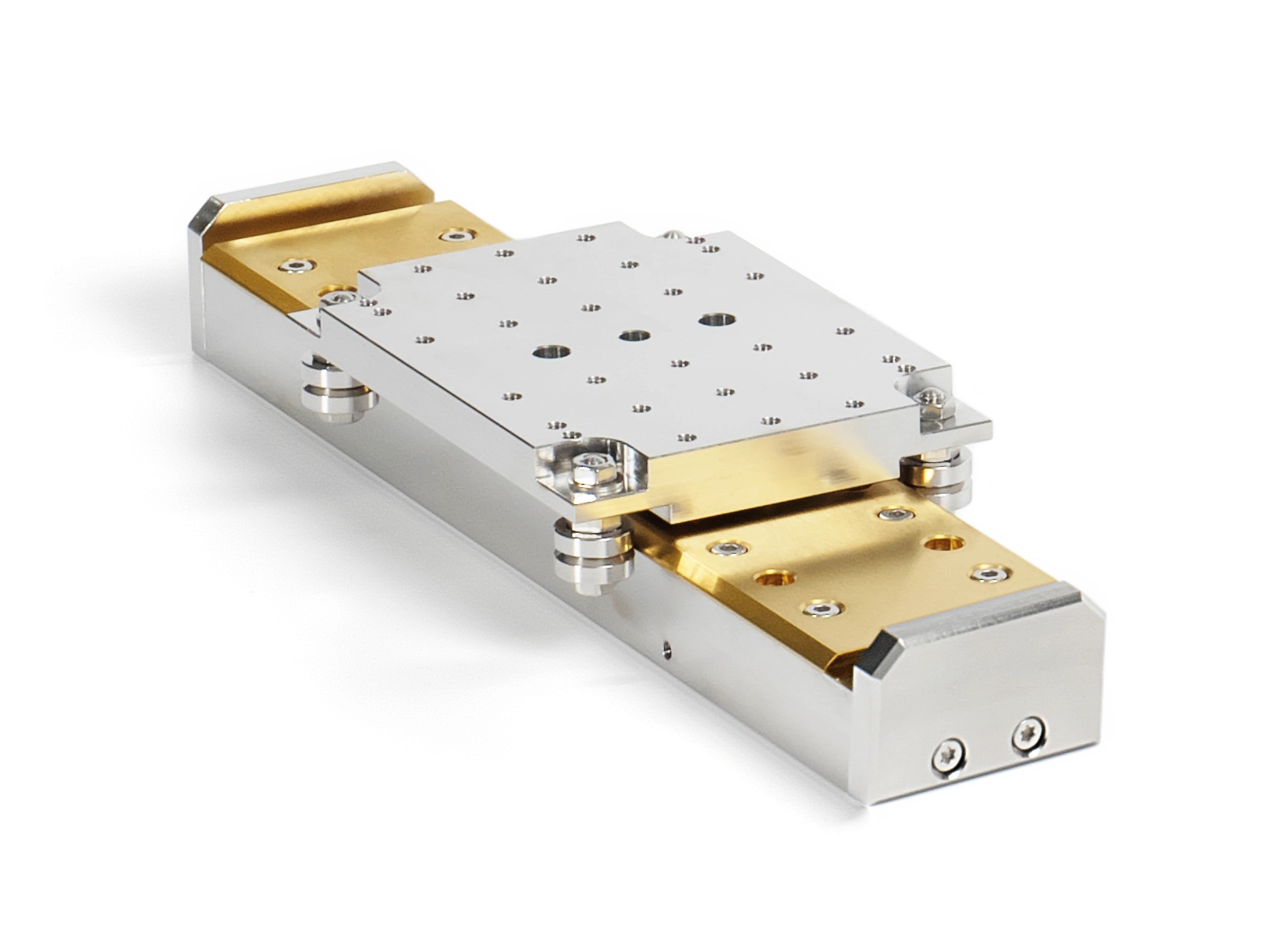

Linear passive stage for ultra high vacuum applications. Travel ranges from 100 to 450 mm and can support loads up to 20 kg.
Designed for use where an additional stage is required to support high moment loads or as the passive element in a kinematic adjustment system.
Overview
- Standard travels from 100 to 450 mm
- Suitable for use to 1 x 10-10 mBar
- Lightweight design using UHV-prepared aluminium construction as standard
- Stainless steel construction available (option SS)
- Bakeable to 150 °C (200 °C for option SS)
| Order Code | Description |
Price
|
|---|---|---|
| VSM23-P-100 | 100 mm travel, passive stage | 1,948.002,675.002,280.00 |
| VSM23-P-150 | 150 mm travel, passive stage | 3,219.004,415.003,770.00 |
| VSM23-P-200 | 200 mm travel, passive stage | 2,418.003,320.002,830.00 |
| VSM23-P-250 | 250 mm travel, passive stage | 2,648.003,635.003,100.00 |
| VSM23-P-300 | 300 mm travel, passive stage | 2,868.003,935.003,355.00 |
| VSM23-P-350 | 350 mm travel, passive stage | 4,541.006,230.005,315.00 |
| VSM23-P-400 | 400 mm travel, passive stage | 3,508.004,815.004,105.00 |
| VSM23-P-450 | 450 mm travel, passive stage | 5,138.007,050.006,015.00 |
Related Products

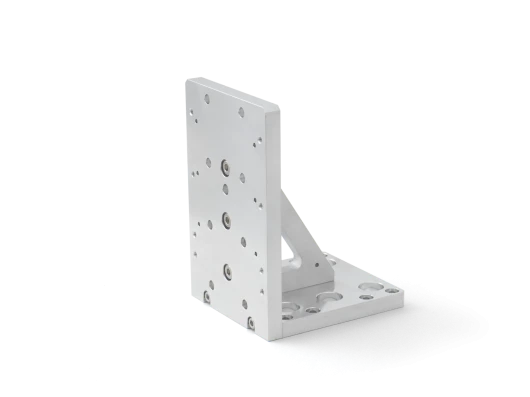

VSM Stage Mounting Brackets and Table
Mounting Brackets For UHV Compatible Stages.

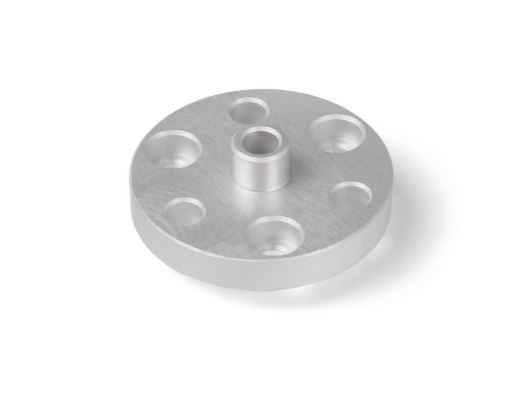

Stage Alignment Spigot
Stage Alignment Spigot for VSM Stages.

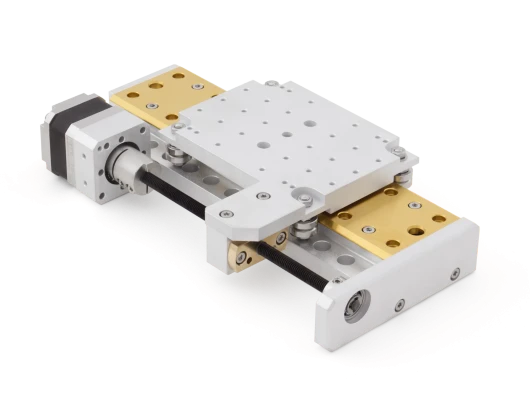

VSM23-X
VSM23-X linear translation stage for ultra high vacuum applications. Travel ranges from 100 to 450 mm and can support loads up to 20 kg.

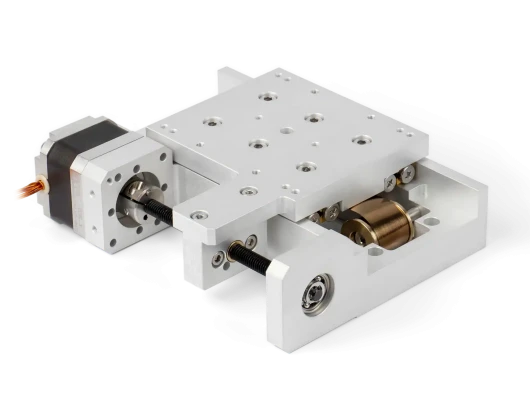

VSM17-X
High performance (rigid), modular UHV compatible stage. Travel ranges from 50 to 300 mm and can support loads up to 50 kg.

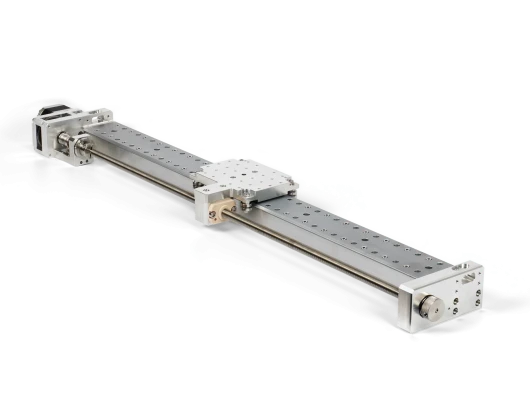

VSM30-X
Linear translation stage for ultra high vacuum applications. Travel ranges from 500 mm and can support loads up to 40 kg.

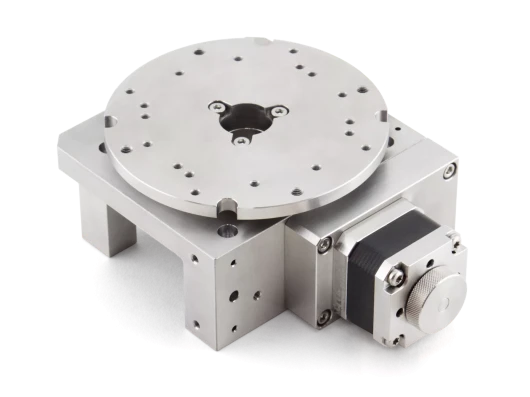

VSM17-R-72K
High resolution UHV rotation stage. 0.005° resolution.

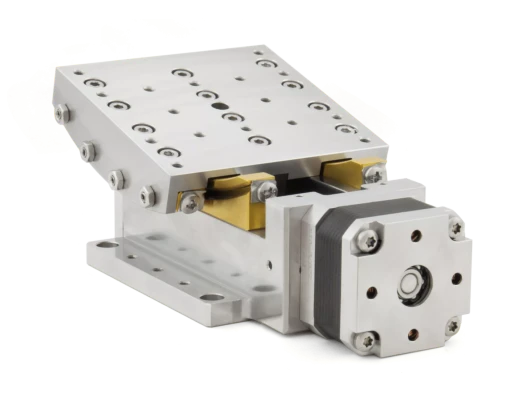

VSM17-G-070
