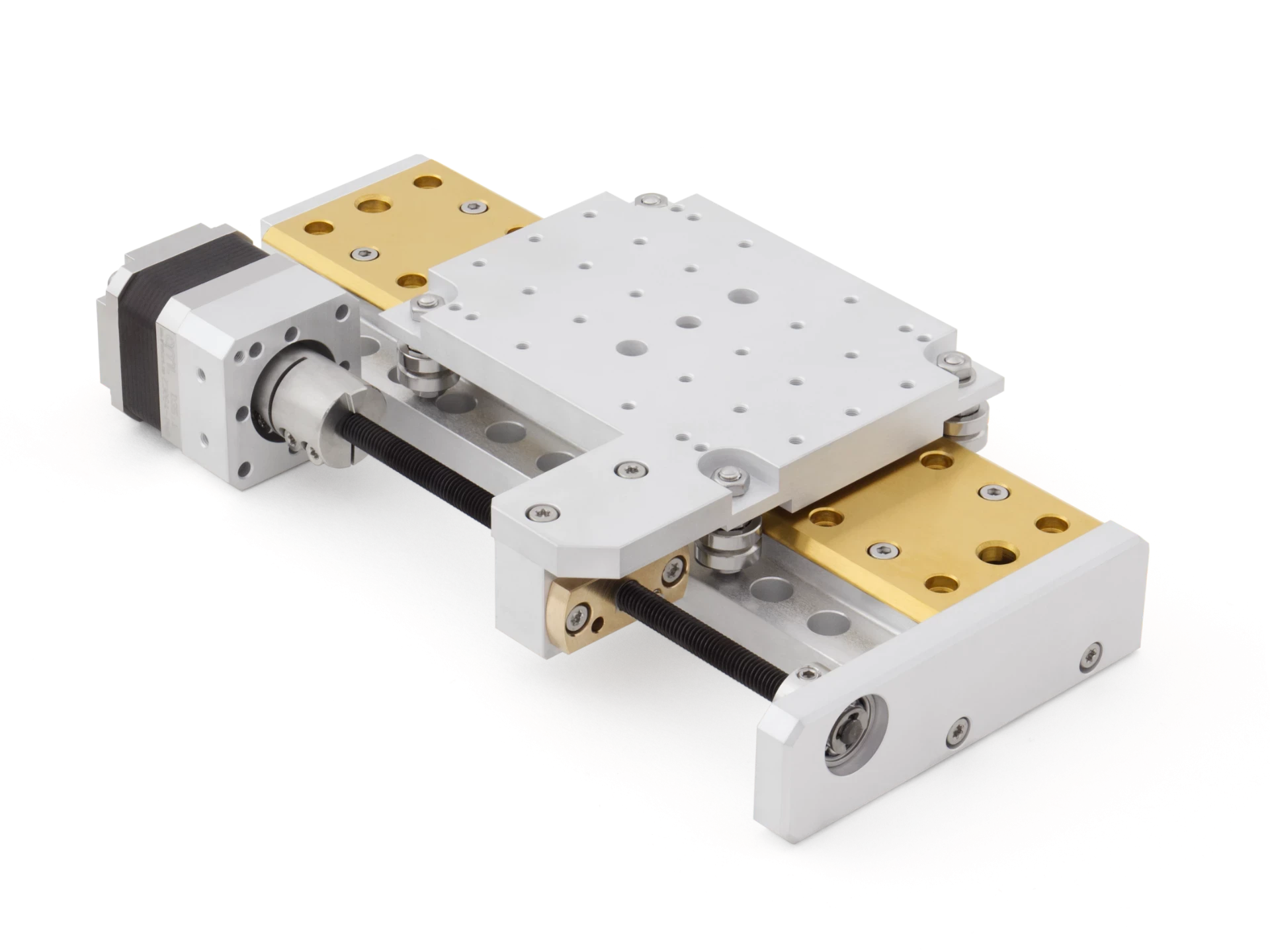

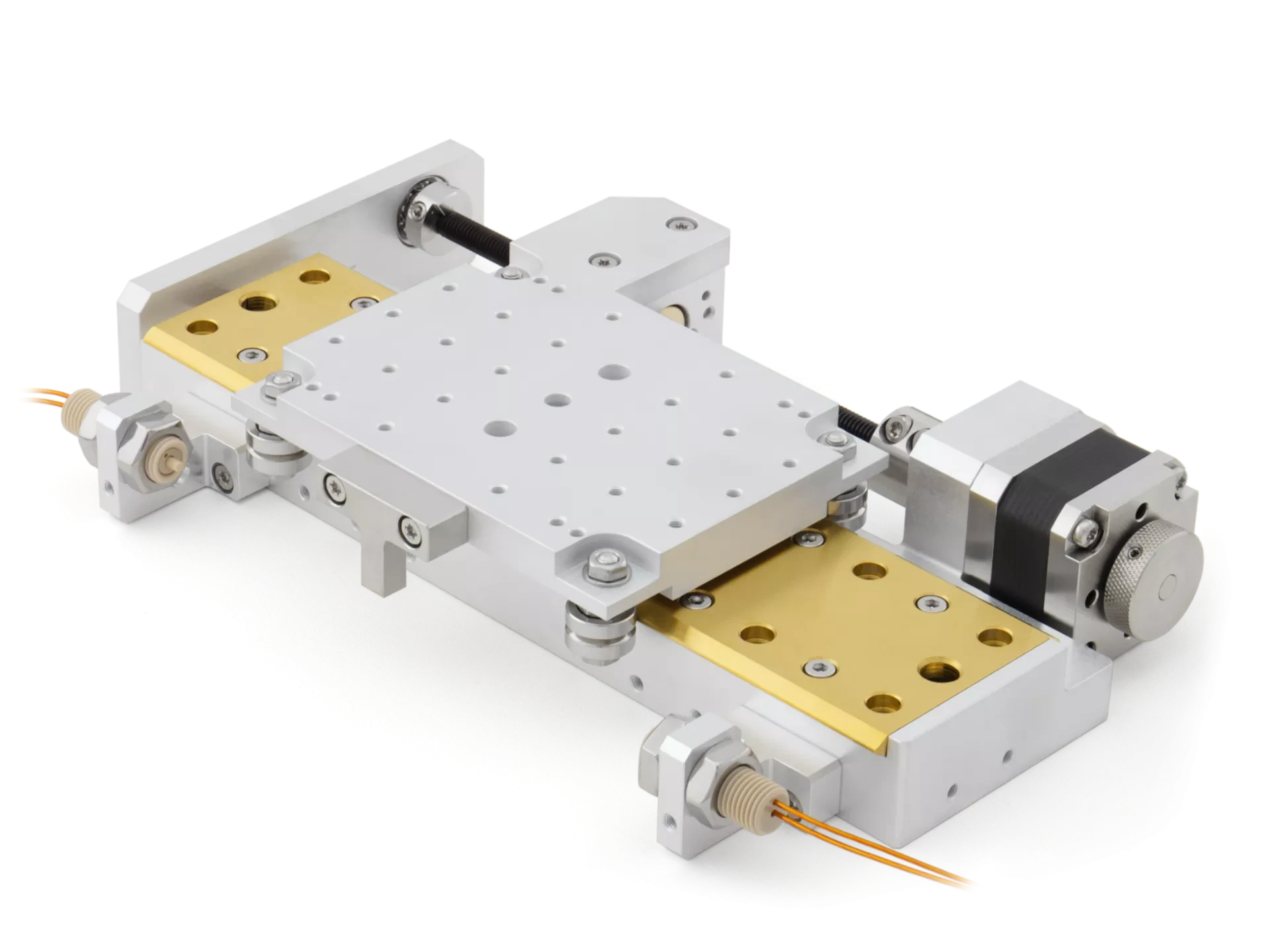

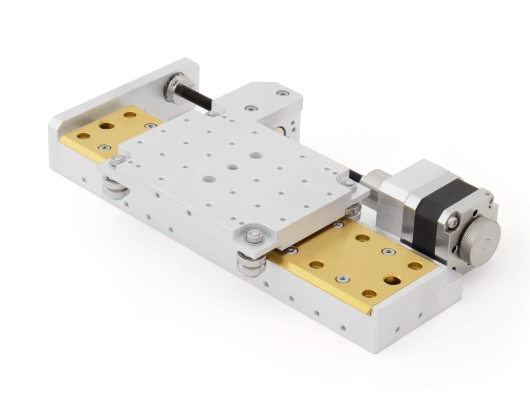

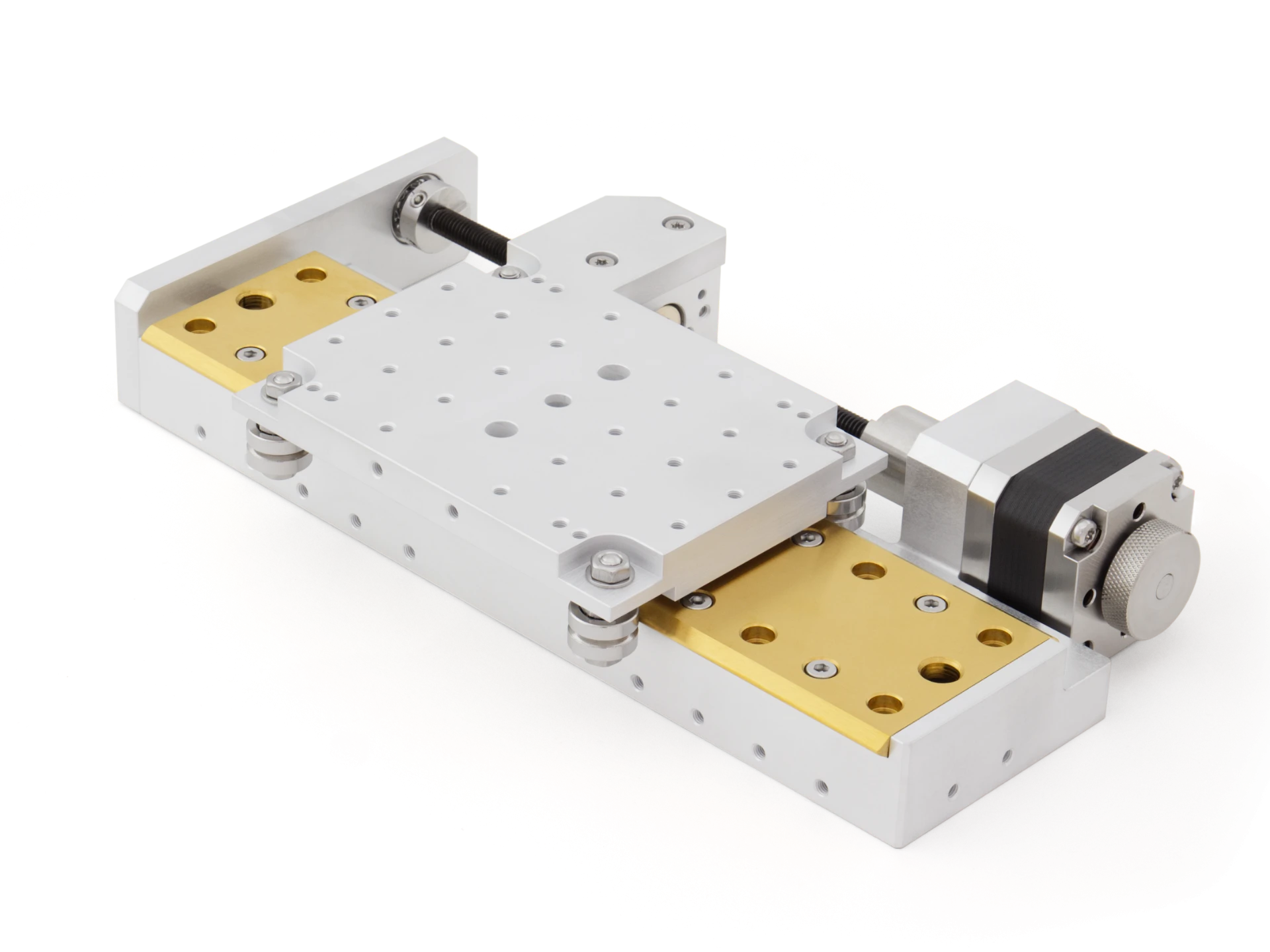

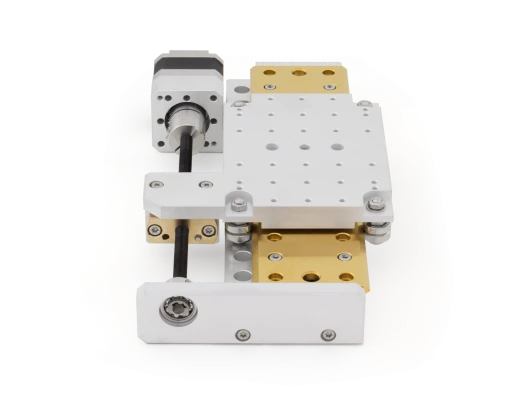

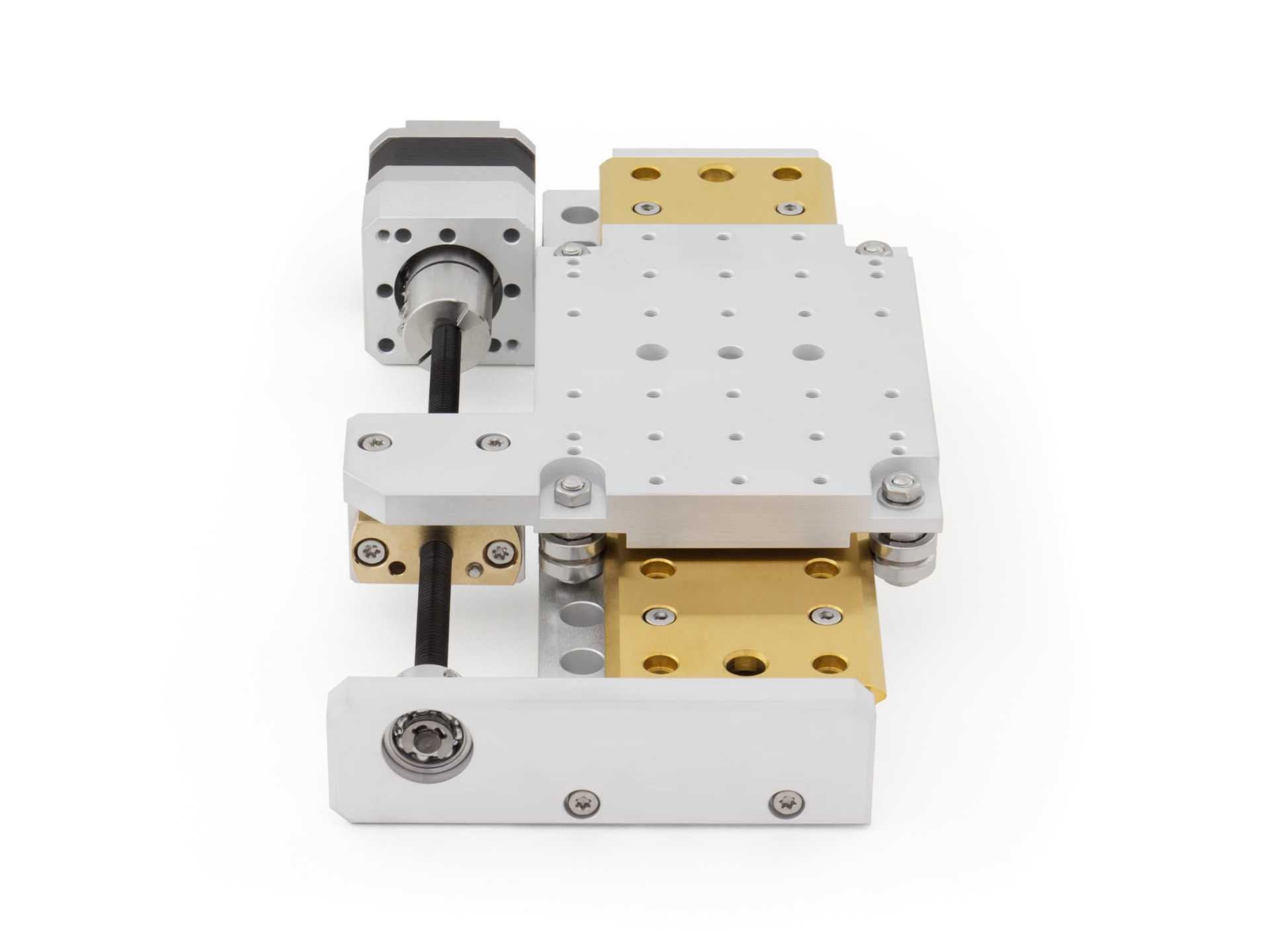

VSM23-X
Modular UHV Compatible Stage
From £2,897.00 excl. VAT and transportation cost$4,000.00 excl. VAT and transportation cost€3,460.00 excl. VAT and transportation cost
Linear translation stage for ultra high vacuum applications. Travel ranges from 100 to 450 mm and can support loads up to 20 kg. 1 µm or 5 µm resolution available. Modular design enables direct compatibility with all VSM23 and VSM17 stages.
Compatible with AML's vacuum stage mounting brackets. These can be used to create multi-axis mechanisms with VSM stages.
Overview
- Standard travels from 100 to 450 mm
- 5 µm resolution (1 µm for option HR)
- Maximum speed 25 mm/s (5 mm/s for option HR)
- Suitable for use to 1 x 10-10 mBar
- Directly stackable for XYZ orientations with all VSM23 and VSM17 stages
- Lightweight design using UHV-prepared aluminium construction as standard

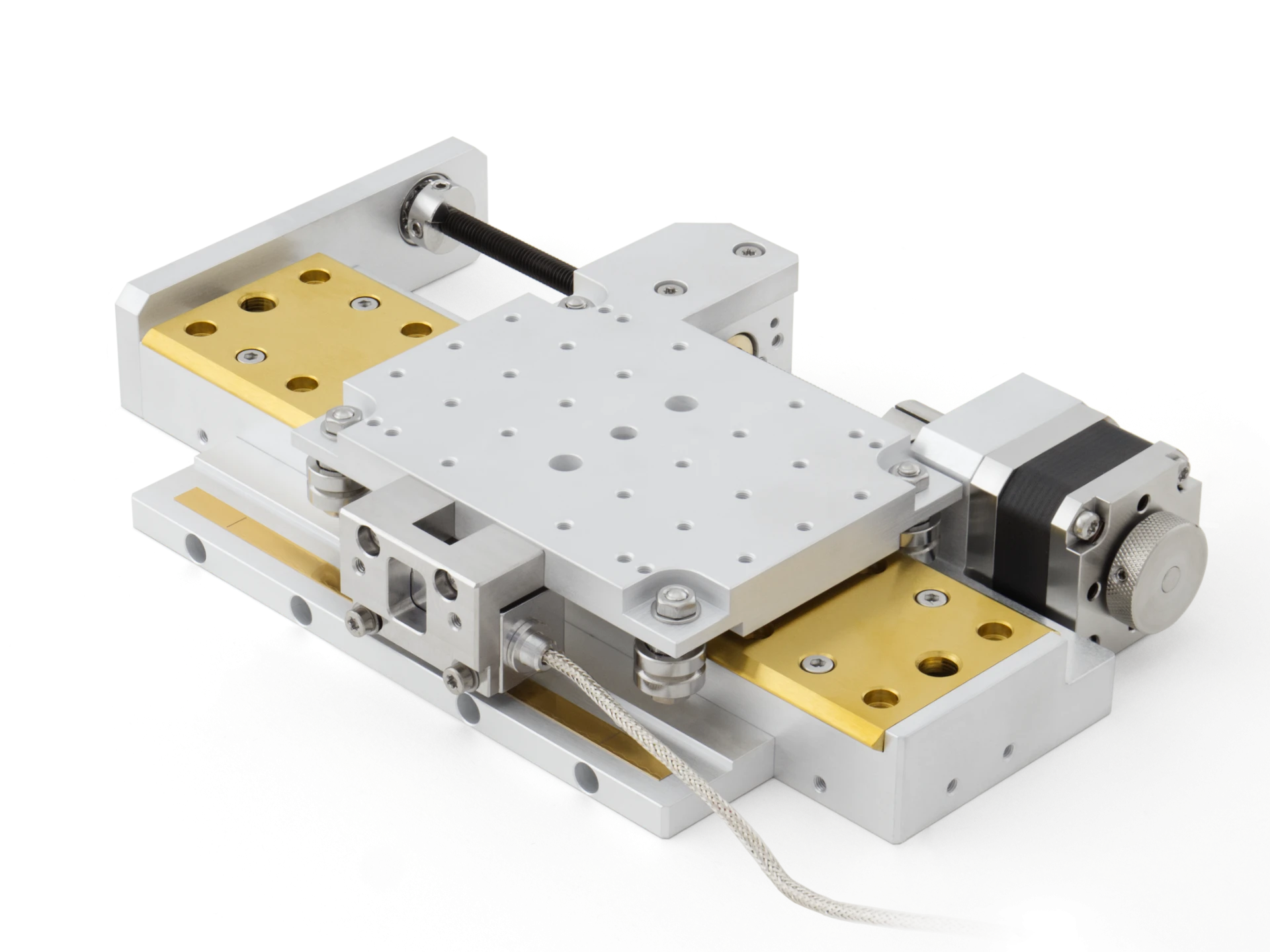

- Limit switches and encoder options available
- Stainless steel construction available (option SS)
- Bakeable to 150°C (200°C for option SS)
| Order Code | Description |
Price
|
|---|---|---|
| VSM23-X-100 | 100 mm travel, 5 µm resolution | 2,897.004,000.003,460.00 |
| VSM23-X-150 | 150 mm travel, 5 µm resolution | 3,268.004,510.003,905.00 |
| VSM23-X-200 | 200 mm travel, 5 µm resolution | 3,891.005,370.004,650.00 |
| VSM23-X-250 | 250 mm travel, 5 µm resolution | 4,063.005,610.004,855.00 |
| VSM23-X-300 | 300 mm travel, 5 µm resolution | 4,423.006,105.005,285.00 |
| VSM23-X-350 | 350 mm travel, 5 µm resolution | 4,681.006,460.005,595.00 |
| VSM23-X-400 | 400 mm travel, 5 µm resolution | 5,303.007,320.006,335.00 |
| VSM23-X-450 | 450 mm travel, 5 µm resolution | 5,415.007,475.006,470.00 |
Related Products
SMD4 Stepper Motor Drive
Stepper motor drive optimised for use with AML UHV-compatible motors. Features advanced connectivity with USB, Ethernet and RS232/485 interfaces. Optional encoder module for incremental and absolute encoders
VSM Stage Mounting Brackets and Table
Mounting Brackets For UHV Compatible Stages.
Stage Alignment Spigot
Stage Alignment Spigot for VSM Stages.

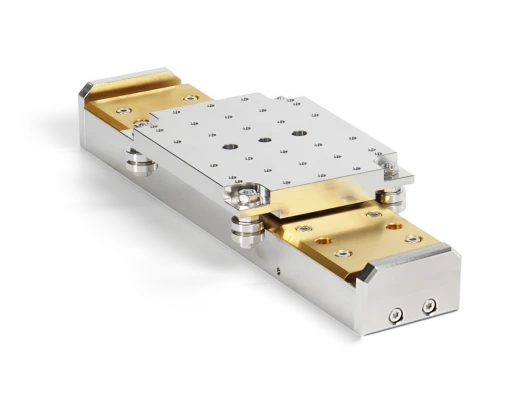

VSM23-P
Linear passive stage for UHV applications.
Travel ranges from 100 to 450 mm and can support loads up to 20 kg.

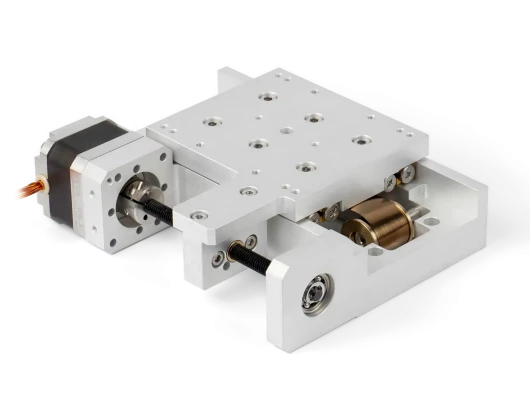

VSM17-X
Compact, high-load, modular UHV compatible stage.
Travel ranges from 50 to 300 mm and can support loads up to 50 kg.

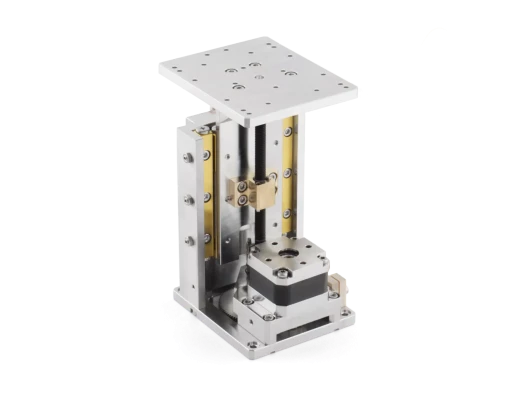

VSM17-Z
Modular UHV compatible stage. Designed specifically for Z-axis translation.
Travel ranges from 50 to 70 mm and can support loads up to 30 kg.
VSM17-R-72K
High resolution UHV rotation stage. 0.005° resolution.

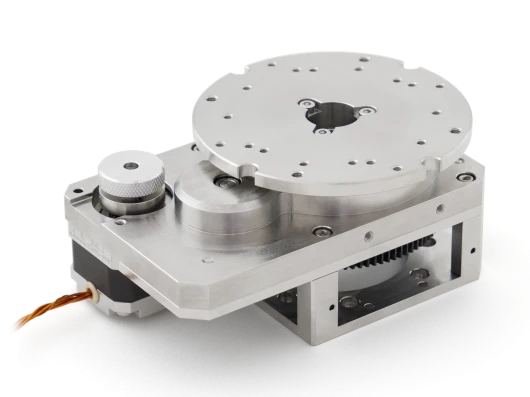

VSM17-R-3K6
Zero backlash UHV rotation stage. 0.1° resolution.

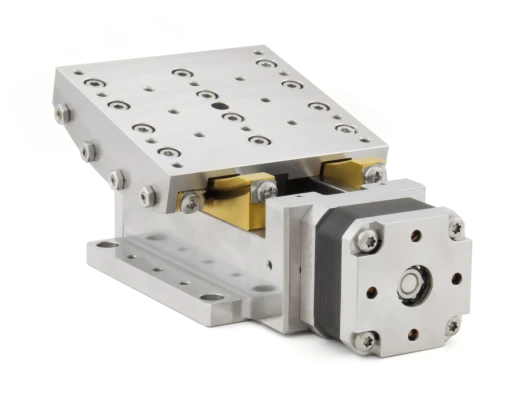

VSM17-G-070
High performance, modular UHV goniometer stage.

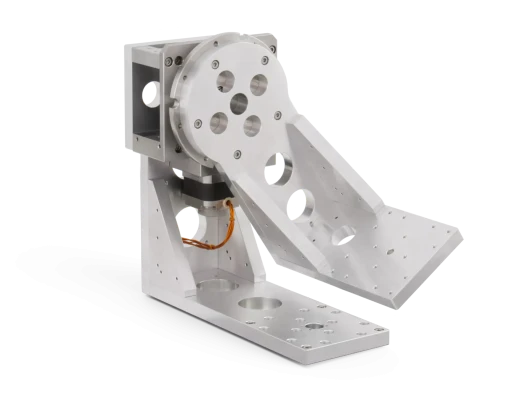

VSM17-G-114
