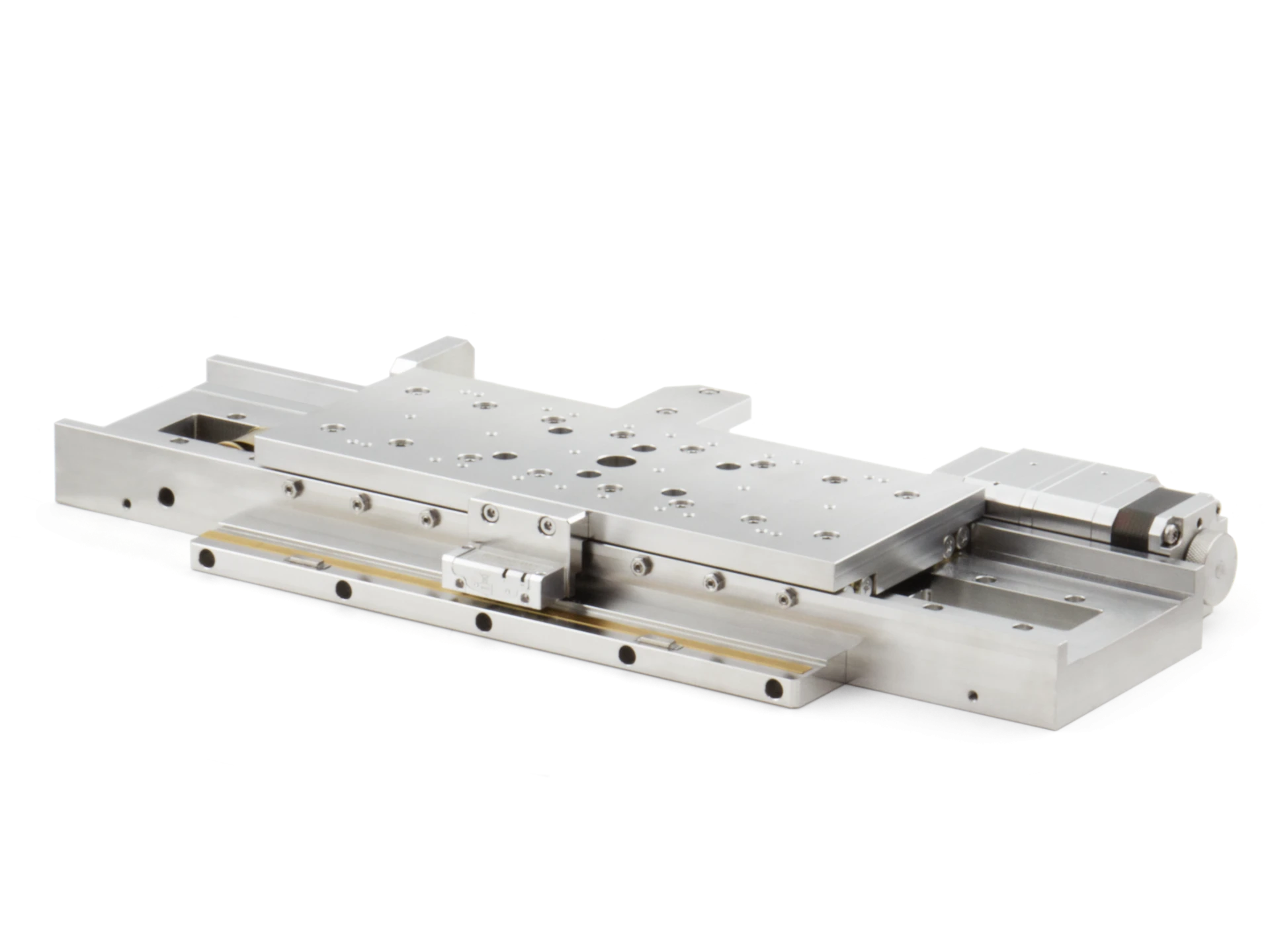

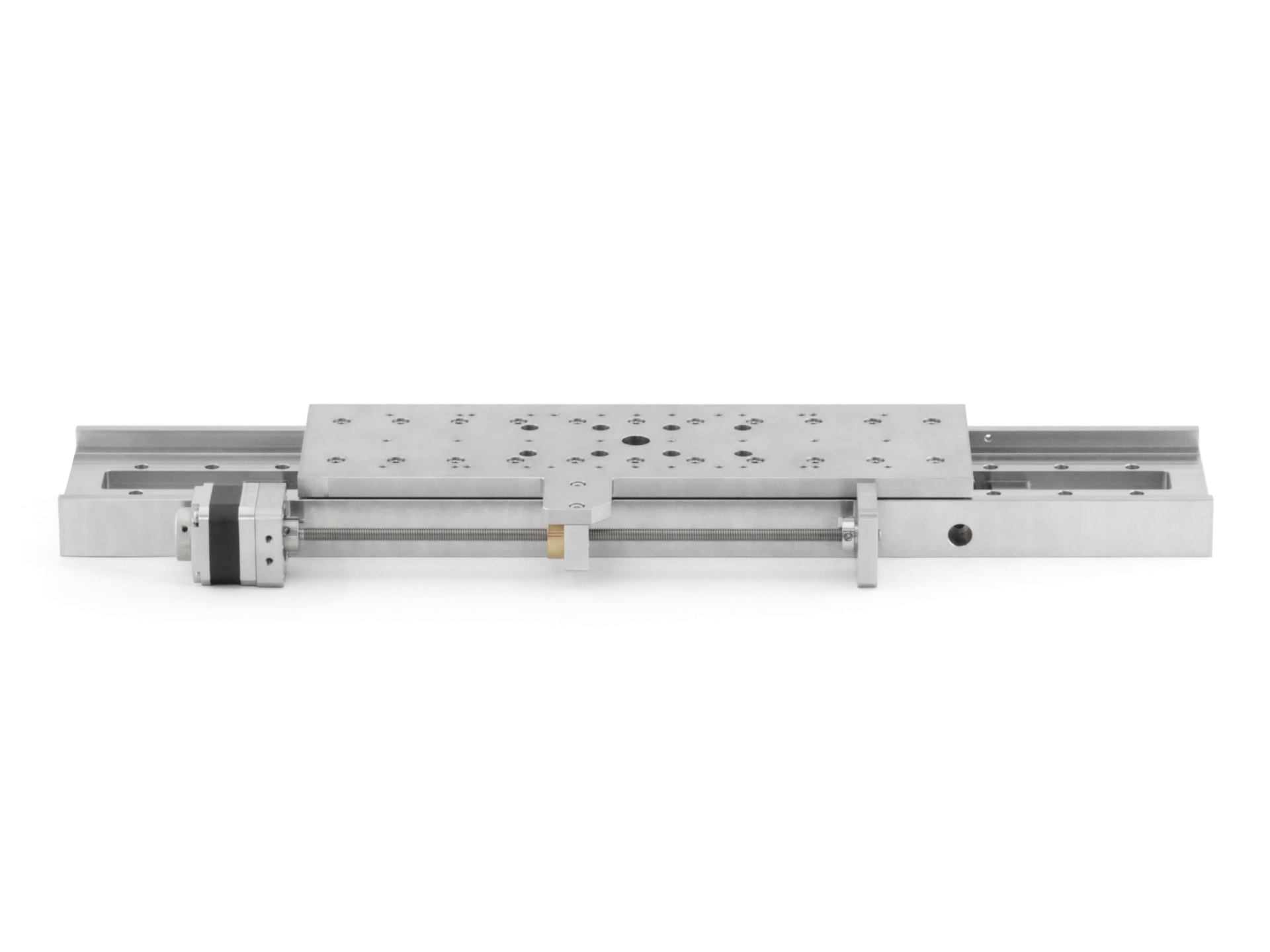

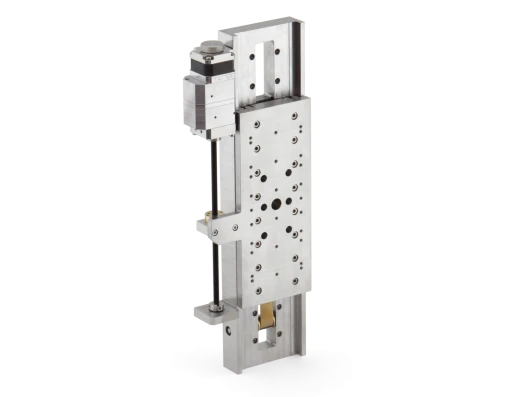

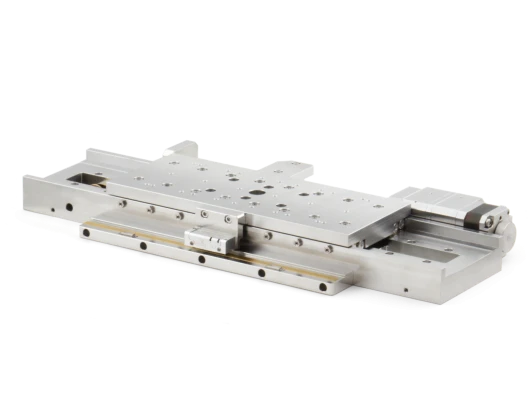

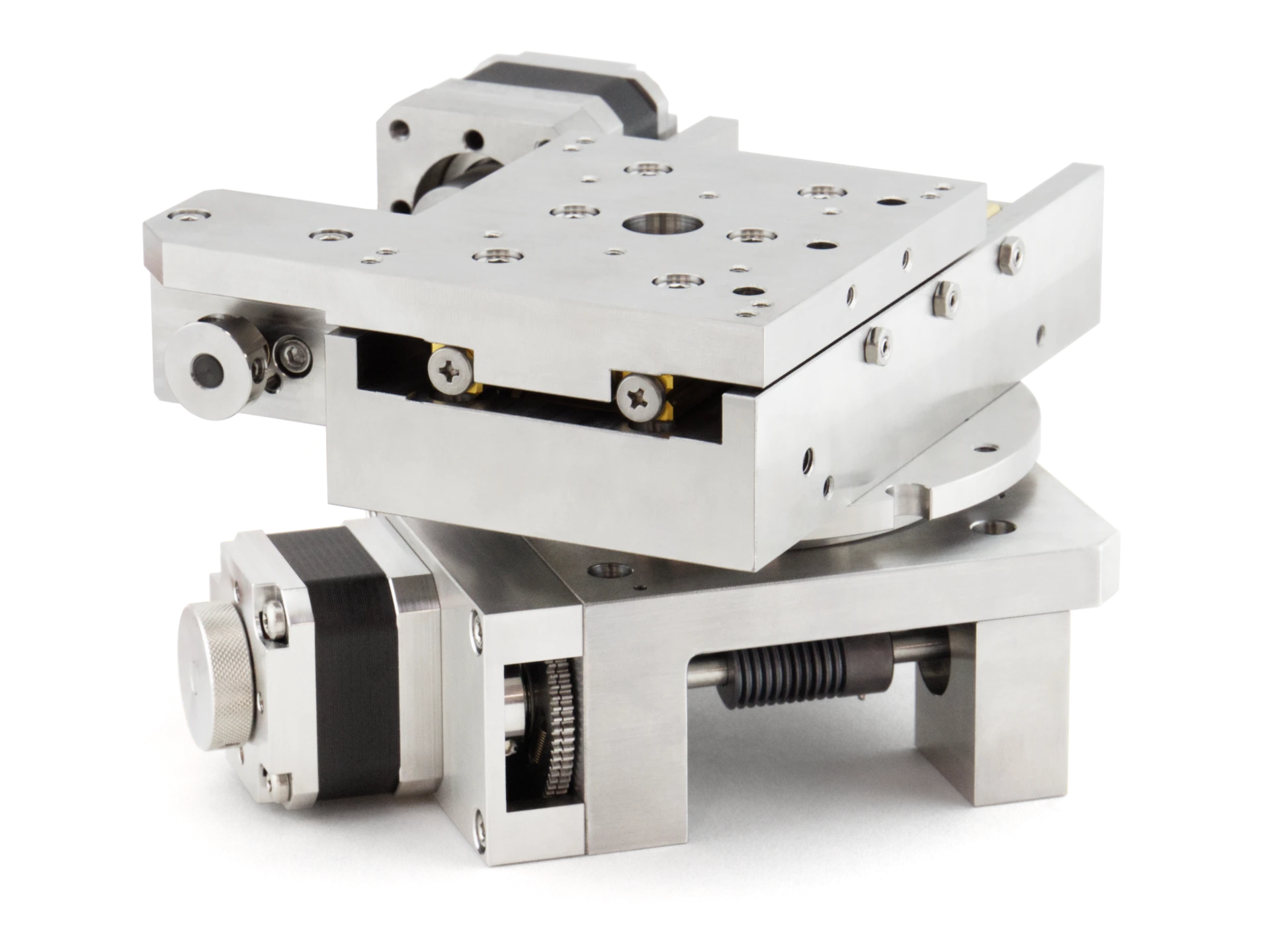

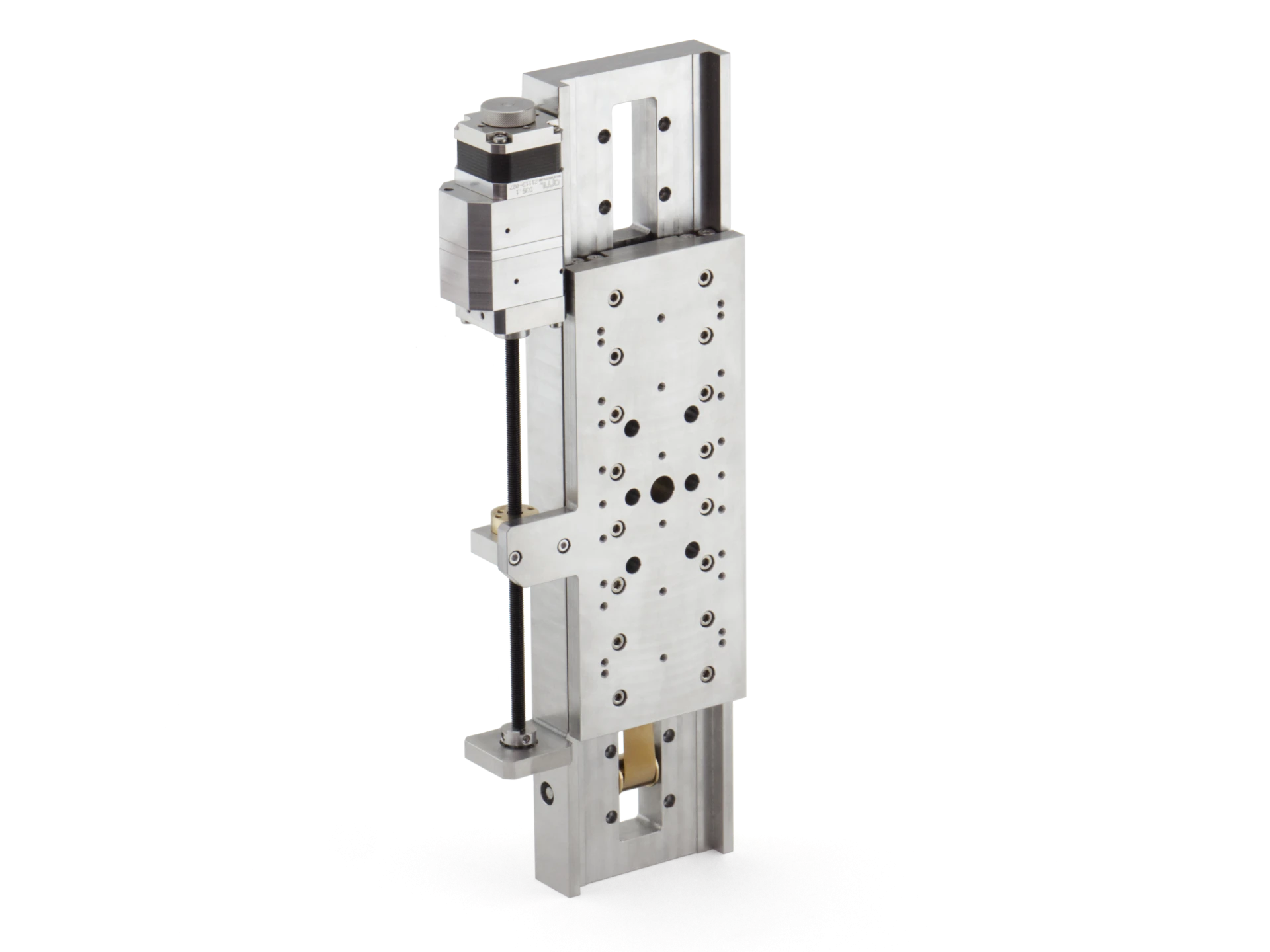

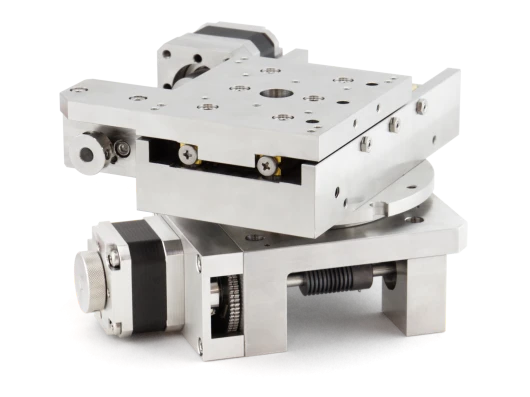

VSM17-X
High Performance (Rigid), Modular UHV Compatible Stage
From £3,091.00 excl. VAT and transportation cost$4,270.00 excl. VAT and transportation cost€3,695.00 excl. VAT and transportation cost
Linear translation stage suitable for use in UHV. Can support centred loads of up to 50 kilograms and travel from 50 to 300 mm. 5 µm resolution allows for precise in-vacuum motion.
Overview
- Standard travels from 50 to 300 mm
- 5 µm resolution (1 µm for option HR)
- Maximum speed 15 mm/s (3 mm/s for option HR)
- Directly stackable for XYZ orientations
- Suitable for use to 1 x 10-10 mBar
- UHV-prepared aluminium construction as standard
- Stainless steel construction available (option SS)
- Bakeable to 150°C (200°C for option SS)
| Order Code | Description |
Price
|
|---|---|---|
| VSM17-X-050 | 50 mm Travel, 5 µm Resolution | 3,091.004,270.003,695.00 |
| VSM17-X-100 | 100 mm Travel, 5 µm Resolution | 4,482.006,185.005,355.00 |
| VSM17-X-150 | 150 mm Travel, 5 µm Resolution | 5,316.007,340.006,350.00 |
| VSM17-X-200 | 200 mm Travel, 5 µm Resolution | 7,326.0010,110.008,750.00 |
| VSM17-X-250 | 250 mm Travel, 5 µm Resolution | 7,526.0010,385.008,990.00 |
| VSM17-X-300 | 300 mm Travel, 5 µm Resolution | Contact Us |
