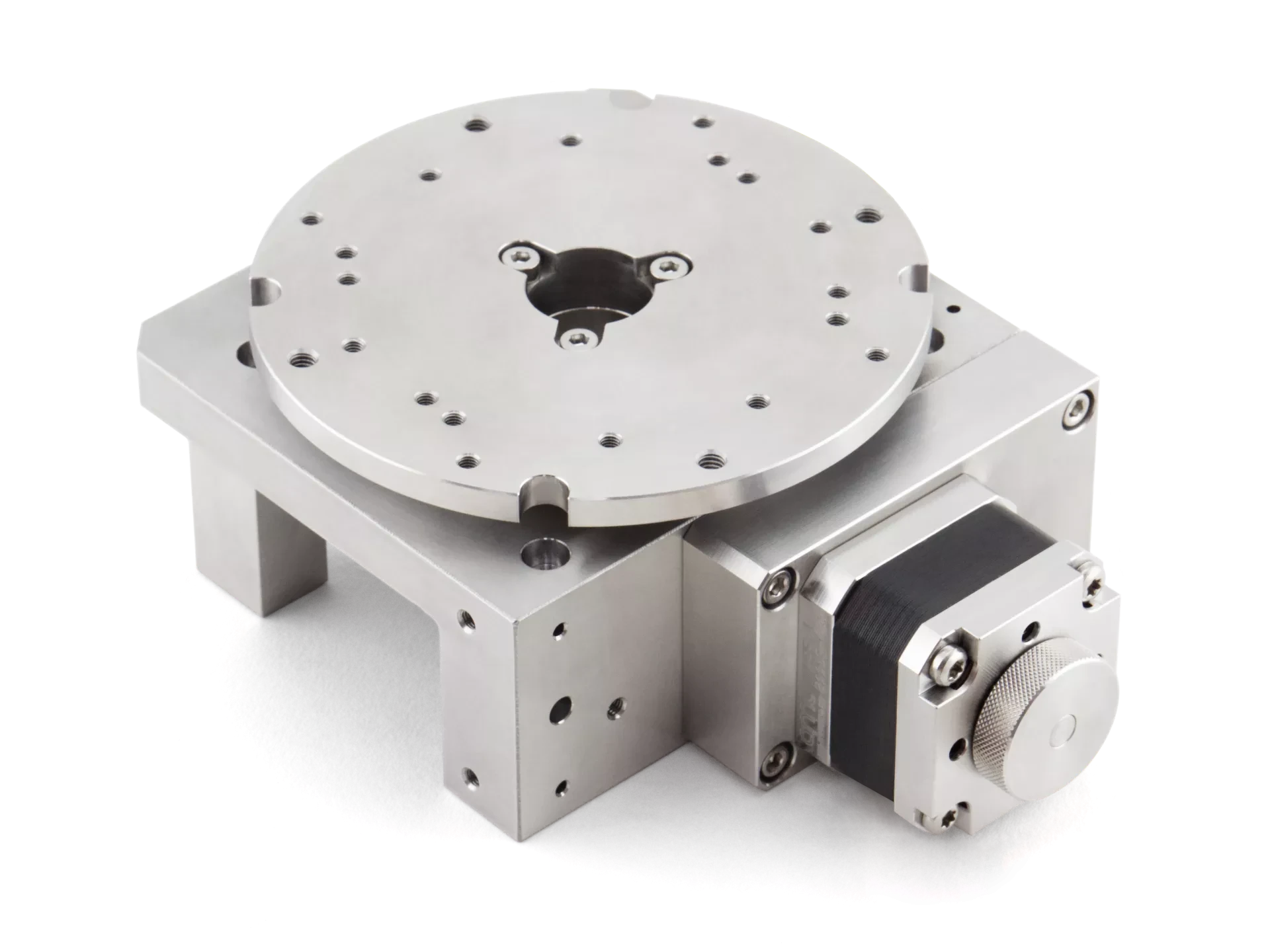

VSM17-R-72K
High resolution UHV rotation stage. 0.005° resolution.
360° continuous rotation range
0.005° resolution per step
Backlash less than 0.2°
Load capacity 100 kg


VSM17-R-3K6
Zero backlash UHV rotation stage. 0.1° resolution.
360° continuous rotation range
0.1° resolution per step
Backlash less than the resolution
Load capacity 100 kg
VSM24-R
High Load (Rigid) UHV Rotation Stage
360° continuous rotation range
0.005° resolution per step
0.15° backlash (<0.005° with optional anti-backlash spring)
250 kg centred normal load capacity


UHV RSB Rotation Stage
RSB rotational stages available with various ratios. Directly stackable with AML linear translators.
Resolutions from 0.036° to 0.004° per step
Unloaded backlash is less than resolution
Intended for intermittent rotation of balanced loads of up to 1 kg
RSB10K/20K/30K can stack on AML translation stages
