UHV-Compatible Custom 4-Axis Manipulator
Posted on Wednesday 28th October 2020 at 11:13
Arun Microelectronics specialises in the design and manufacture of in-vacuum motion systems and is a leading global manufacturer of vacuum compatible stepper motors for industrial, scientific and R&D applications.
A customer contacted us requiring a UHV-compatible 4-axis manipulator for an electron beam application. We worked closely with the customer to design a custom manipulator stage. The travel and load parameters were provided as well as some other key design requirements.
- Vacuum: 1E−7 mBar
- Temperature: −50 °C → 0 °C
- Linear stage full step resolution: 5 μm (repeatability 1 μm)
- Rotation stage full step resolution: 0.005 °
- Coaxial independent detector arm

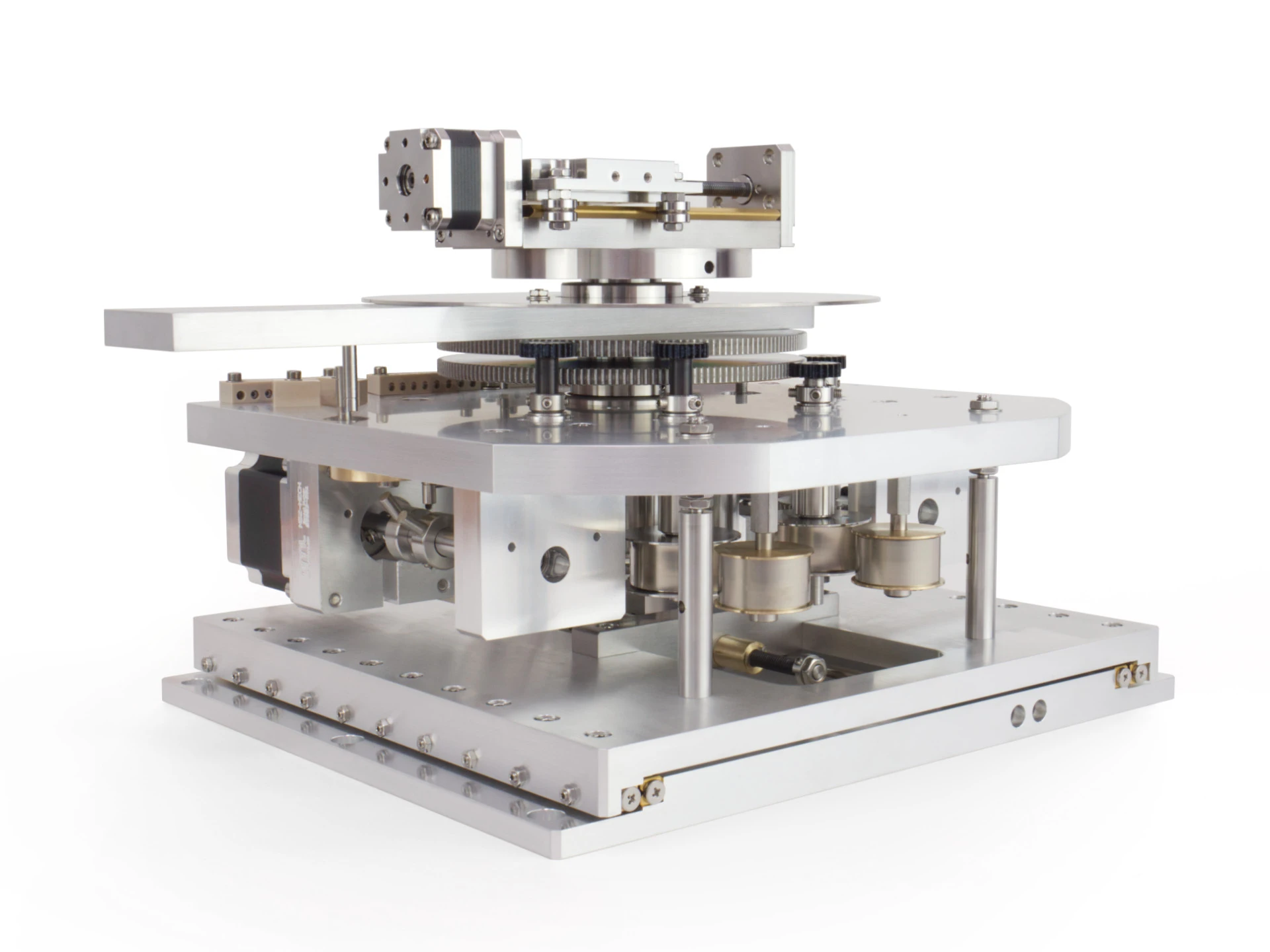

We designed a 4-axis manipulator capable of meeting the customer’s requirements. The stage includes a custom-design linear translator stage, two custom-design independent coaxial rotation stages and one of our standard LTVL-050 linear translator stages.

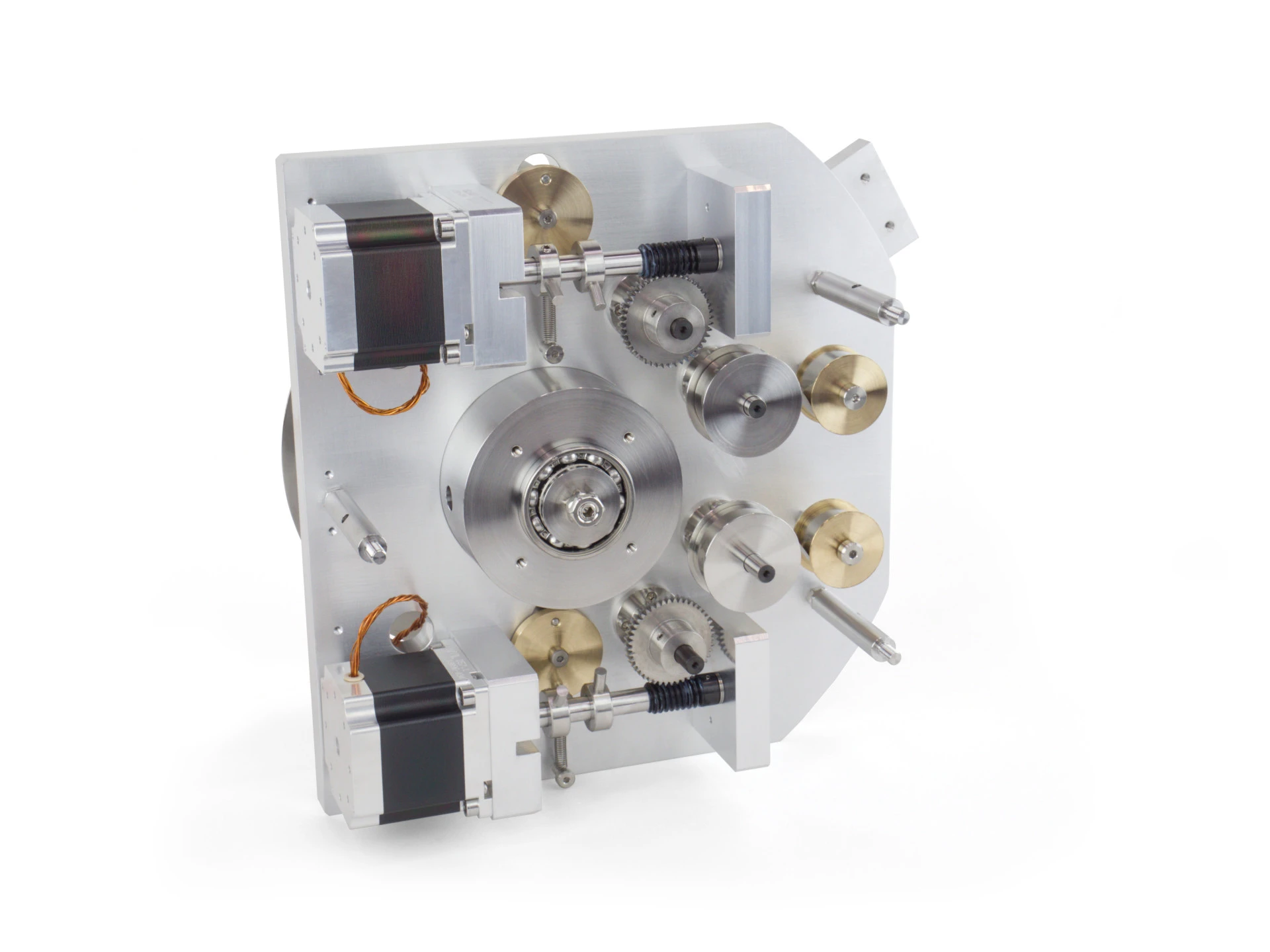

Two of our D57.1 UHV-compatible stepper motors were used to drive the independent sample and detector rotation stages via an anti-backlash gearing system.
The mechanism was constructed using only UHV-compatible materials, and assembled using UHV-compatible methods, in a dedicated ISO class 7 cleanroom at our factory in the United Kingdom.
An array of SMD3 Stepper Motor Drives were used to extensively test each axis of the manipulator stage, to ensure that it operates to AML’s high standard. The final specification is as follows:
| Axis | X1 | R1 | R2 | X2 |
|---|---|---|---|---|
| Motor type | D42.1 | D57.1 | D57.1 | D35.1 |
| Stacking order | 4 | 3 | 2 | Sample |
| Lubrication | Nyetorr® | Nyetorr® | Nyetorr® | Nyetorr® |
| Guide type | Crossed roller | Ball bearing | Ball bearing | V-groove bearing |
| Load (g) | 1000 | 500 | ||
| Travel (deg/mm) | ±25 mm | ≥360° | ≥360° | ±25 mm |
| Resolution (per step) | 5 μm | 0.005° | 0.005° | 5 μm |
Nyetorr® ultra-low outgassing grease was used on the motor bearings, leadscrews, worms and gears to increase the life of the mechanism.
