Custom 6-Axis UHV Mechanism

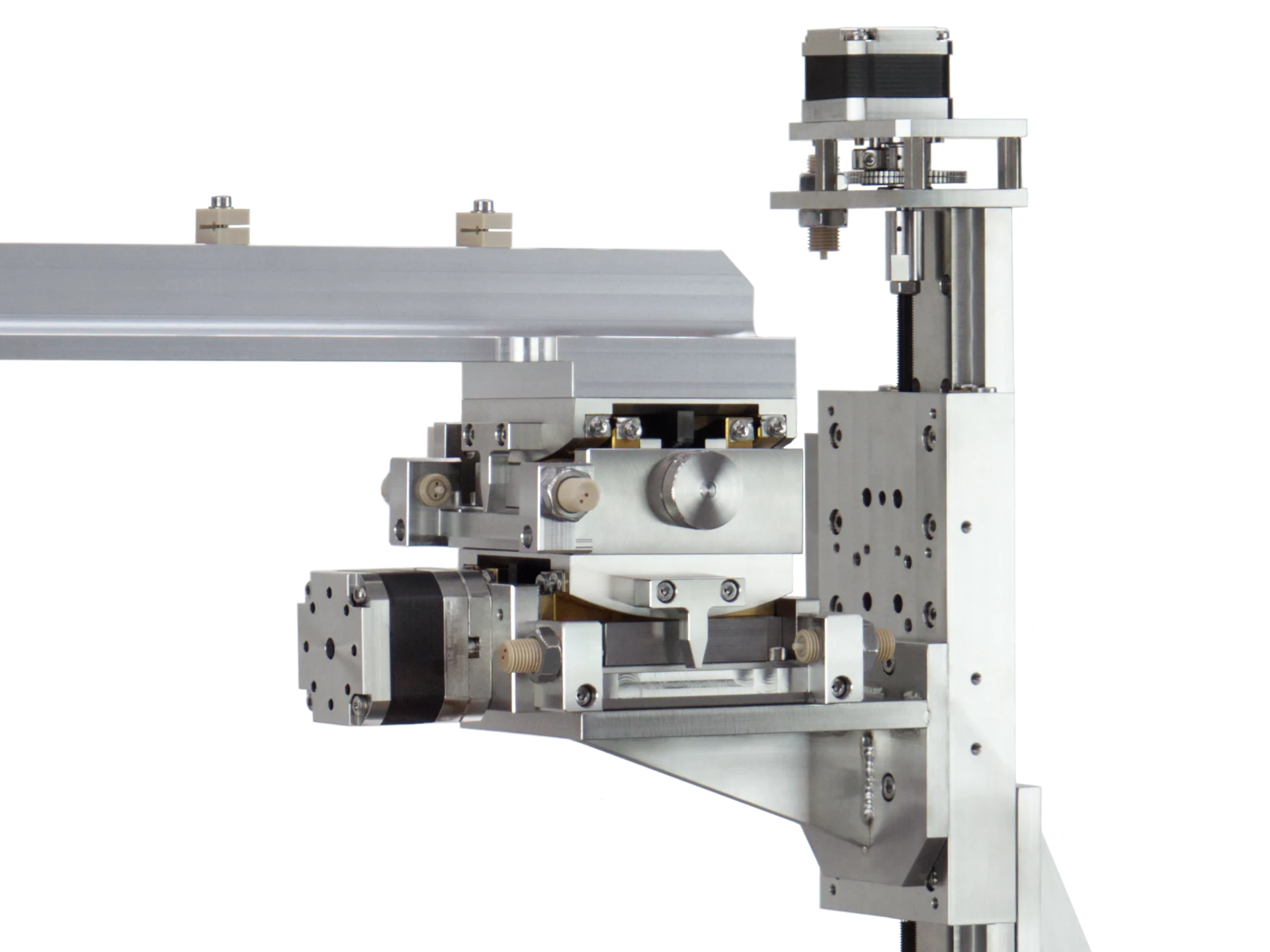

6-Axis Custom Mechanism 2 transparent
Designed in collaboration with customer’s requirements for a lever arm.
Utilises AML’s VSM17-G-070-LS goniometer stages to accurately manipulate and position the mechanism’s lever arm.
LTXH linear stages used for their high rigidity and 1µm resolution.
All axes built using standard AML stages.
Features encoders and limit switches to enhance accurate control of the mechanism.
